Other Topics

Exporting Your Data

You can export the data collected by VisibleTesla to an Excel file for your own analysis. There are two sets of data you can export:

  1. Statistics: The data that was gathered for the Graphs Tab. You can export this data using File→Export Stats Data... menu item.
  2. Locations: The data that was gathered for the Location Tab. You can export this data using File→Export Location Data... menu item.

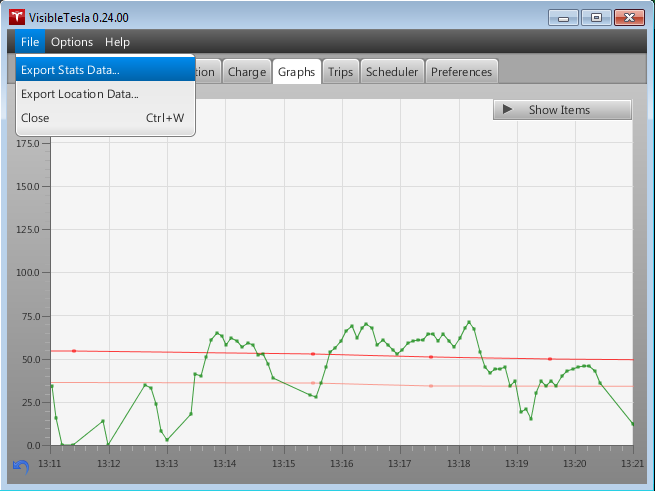

In either case you'll be prompted to choose a location and name for the exported file. Be sure to use the extension ".xls"; for example, MyStats.xls. The screen shot below shows the Export menu items.

Export Stats

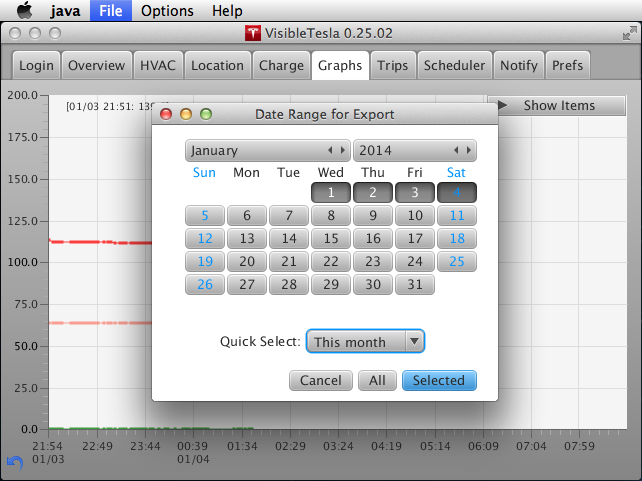

After you choose a file and location, you'll be asked how much of your data you want to export. You can select a range of days on the calendar by selecting the starting day then holding down the shift key and selecting the ending day. You can use the Quick Select dropdown list to easily select some common ranges. Once you've selected your range, press the Selected button. If you want to export all of your data, you don't need to bother with the calendar, just press the All button. To abort the export process, hit the Cancel button. This screen shot shows the dialog box that allows you to select a date range.

Export Date Range

When you open an exported file in Excel, you'll see a column corresponding to the time at which each reading was taken and a column for each type of data collected. The time column contains a long, unintelligible number which is an accurate, though obscure, way to keep track of time down to the millisecond. You'll notice that the last column has a version of the timestamp represented as a human-readable date. The table will look something like the one below (a sample of the stats data):

TIMESTAMP C_AMP C_BAM C_EST C_ROC C_SOC C_VLT S_PWR S_SPD
1377743292 0 99.7 -1 55 0 24 14 8/28/13 18:28:12
1377746306 0 99.3 -1 50 0 21 16 8/28/13 19:18:26

You may notice that some entries are blank. This is normal and can happen for a number of reasons. For example, the car may not have provided readings for that statistic at that time.

Tracking Vampire Loss

"Vampire Loss" is the name given to power that is drained from the battery while the car is stationary. This power goes into running the car's on-board systems and is minimized when the car is sleeping. VisibleTesla can help you track how much power you are losing while your car is sitting still. It will review your data and look for any period where your car is stationary (and not charging) for an hour or more. These are called "rest periods." For each rest period it keeps track of when the period started and ended, and the starting and ending range (in miles or km).

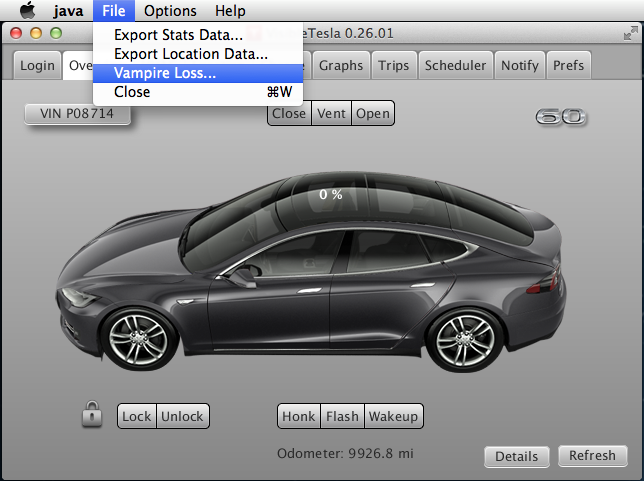

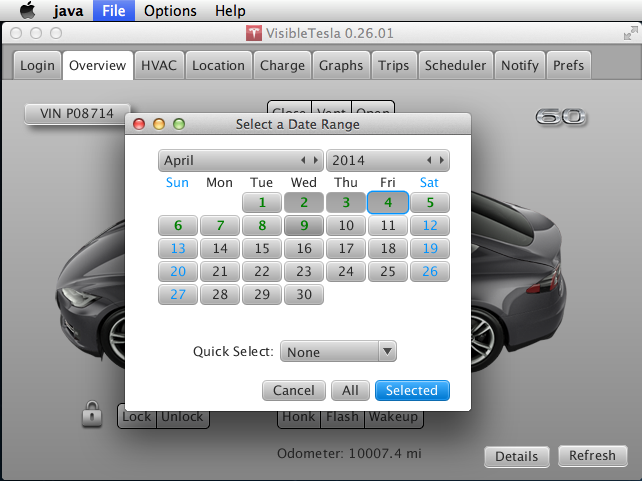

You can access this data in several forms using the File→Vampire Loss... menu item as shown below. Once you do that, a Date Range dialog will appear (see below). Choose a day or range of days that you want to review. You can use the Quick Select dropdown to easily choose common ranges. Days for which data is available are highlighted in green. If you want more days of historical data available, adjust the value of the Load data for preference in the General / Basic Preferences section of the Prefs Tab. If you choose days for which there is no data, no information will be shown.

Vampire Loss Menu

Vampire Date Select

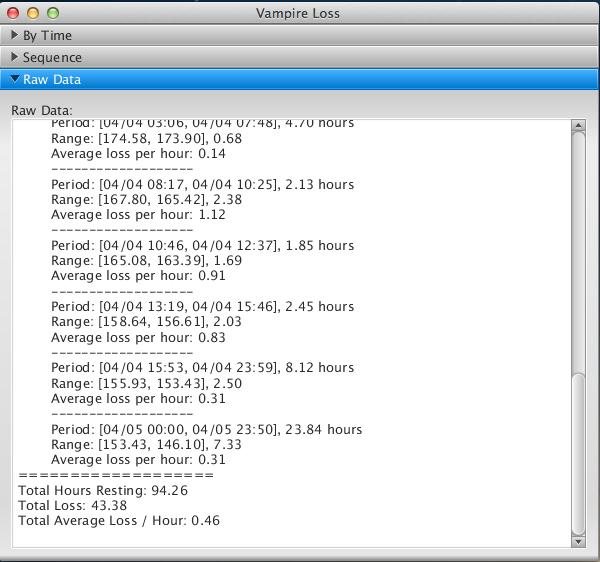

Once you've selected a date range, a new window will appear with three sections: Raw Data, Sequence, and By Time. As can be seen in the screen shot below, the Raw Data pane shows a dump of all of the rest periods and a summary of the overall Vampire Loss averaged across all of those periods.

Vampire Raw Data

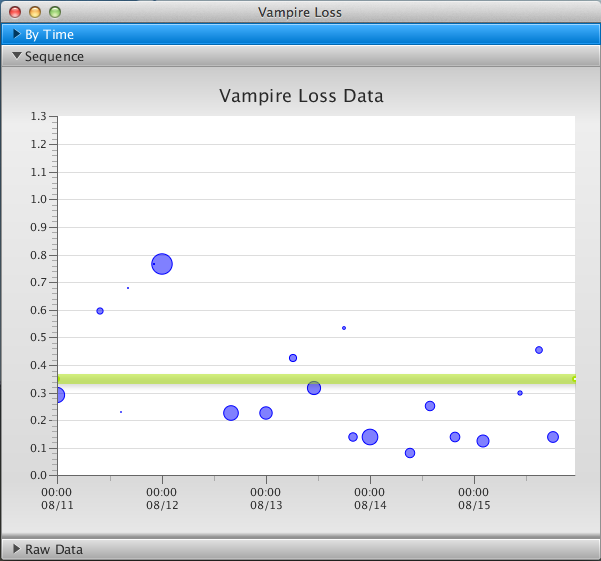

The Sequence chart simply displays a scatter plot of each of the rest periods in sequence. The y axis represents the amount of vampire loss (in miles lost per hour or km lost per hour), and the x axis is just a sequence number. If you hover your mouse over any data point a pop-up will be displayed that gives information about that rest period. You'll also notice a green line across the entire chart. It represents the average vampire loss across all rest periods (in miles lost per hour or km lost per hour). If you hover your mouse over any data point a pop-up will be displayed with additional information. In the screen shot below, the mouse is hovering over the end of the average line, so the pop-up displays the average.

Vampire Scatter Chart

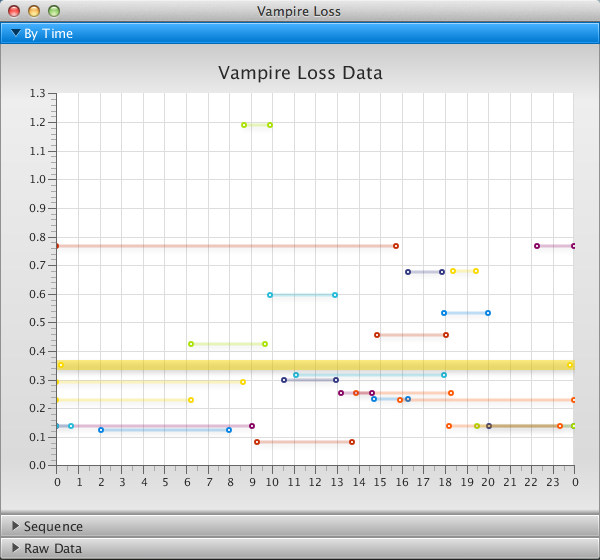

The final chart is called By Time. Like the previous chart, the y axis represents the amount of vampire loss. There is also a line across the entire chart which represents the overall average. That's where the similarities end. In this chart the x axis represents the hour of the day from 0-23. Each rest period is represented by a horizontal line segment which spans the starting time through the ending time of the period. The height of the line segment represents the degree of loss. Let's say your car is stationary every day from 10:00-14:00. You'll see a line segment for that period for each day in the range you selected.

This chart can be used to get a feel for when you car tends to be stationary and how much vampire loss there is during these periods. As with the Sequence chart, you can hover your mouse over any endpoint to see more detailed information about that rest period. If a period spans days (very common), it will be shown as two segments. In cases where your car sits idle for multiple days (what a shame!), the period will be broken up into multiple segments as needed.

Vampire Time Chart

Data Collection and Auto-Refresh

Many of the Tabs in VisibleTesla collect data of one type or another to do their job. The Location Tab collects location-related data, the Charge Tab collects charge-related data, and so on. They only collect this data when they are the selected tab. For example, while you are viewing the Charge Tab it is collecting charge data, but as soon as you switch to the Location Tab, the Charge Tab stops collecting data and the Location Tab starts. A number of tabs don't collect any data (e.g. Login, Prefs). Some tabs collect data only as needed (e.g. Scheduler).

The Graphs Tab is special - it collects data even when you aren't viewing it. It's also opportunistic. It watches the data being collected by other Tabs and looks for anything it can use. In normal circumstances the Graphs Tab collects data every two minutes. If it sees your car in motion, it starts collecting data every 30 seconds. If your car stops, it continues collecting data every 30 seconds for a couple of minutes in case you're at a stop light or something like that. Eventually it will revert to collecting data at 2 minute intervals.

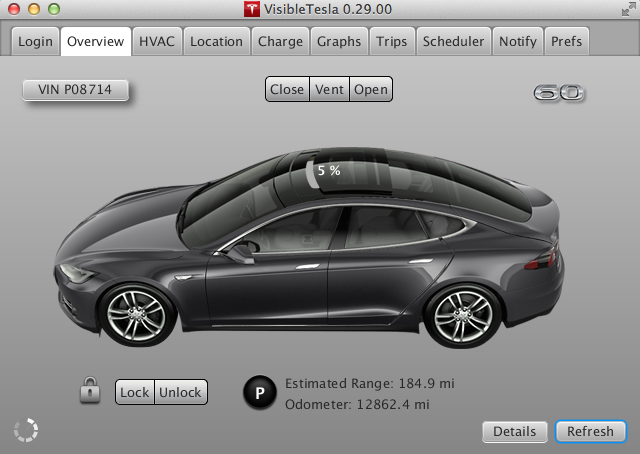

When viewing any tab you may refresh the displayed data by pressing the Refresh button. If you don't press the button, the app will automatically refresh the information every 30 seconds. Switching tabs automatically refreshes the newly selected tab. The screen shot below shows the "spinner" that is displayed when the app is communicating with your car.

The Location Tab is a little different from the others. It auto-refreshes like other tabs, but when the car is in motion it uses a special feature called "Streaming" that allows it to collect data at a higher rate without overloading Tesla's servers.

Speaking of overloading Tesla's servers, VisibleTesla automatically monitors the rate at which it makes requests. If you manually press refresh multiple times in rapid succession, you may find that the spinner rotates for a longer than usual. The app is automatically slowing down its requests to Tesla's servers in order to remain a good citizen. The app may also choose to refresh certain items less frequently than others. For example, the odometer reading on the Overview Tab. Since even at 60 mph the reading doesn't change much every minute, the app does not update it on every auto-refresh.

Web Services

For advanced users only - EXPERIMENTAL. VisibleTesla includes the ability to accept a *very* limited set of commands via http. At the moment, the only functionality available is setting the app's inactivity mode. Support for web (REST) services is off by default and should only be used by people who are comfortable with direct access to these sorts of services. If you do enable the service, it is protected via HTTP Basic Authentication. To enable this feature, read more about the settings in the Prefs Tab.

Once the service is enabled, you have selected a port (or used the default), and have set an authorization code (password), you may access the functionality using a web browser or a command line utility such as curl. The username for all commands is "VT". The password is whatever you establish in the preferences. Note that by default, these services will be visible only on your local network. To access them remotely, you must manually set up port forwarding or use other methods. This is for experienced network users only.

The following table lists the available functions and how to access them. In these examples, the host name is always 127.0.0.1. This is a place holder and should be replaced by your actual hostname or IP address, OR it may be used to access this service from the local machine.

Function URL
Set Inactivity mode to Stay Awake http://127.0.0.1:9090/v1/action/activity/wakeup
Set Inactivity mode to Allow Daydreaming http://127.0.0.1:9090/v1/action/activity/daydream
Set Inactivity mode to Allow Sleeping http://127.0.0.1:9090/v1/action/activity/sleep
Return web page with links to the URLs mentioned above http://127.0.0.1:9090/pages/InactivityOptions.html

Let's say you have established a password of "tesla" in the advanced preferences (please don't use that as your password), and that your IP address is 192.168.1.45. You could set the app to Stay Awake mode with the following curl command. Note that this command contains your password in clear text - don't share it with anyone else:

curl http://VT:tesla@192.168.1.45:9090/v1/action/activity/wakeup

You can also initiate this command via a web browser. Just type the address (without username and password) into your browser's address bar as shown in the screen shot below. Once you do, you will be prompted to enter a username and password. Use VT for the username and your authorization code as the password. In the example above, this was tesla.

You can bookmark these URLs for easy access in the future. Alternatively, you can enter the URL http://192.168.1.45:9090/pages/InactivityOptions.html into your browser and you will receive a simple web page with with links to the three inactivity modes.

Why is this useful?

Setting the inactivity mode remotely is useful if your app is asleep and you are about to drive somewhere. If you want to be sure the trip is recorded without large gaps, you can make sure the app is awake using this mechanism. If you are really comfortable with configuring your home network, and are comfortable with the security, you can use port forwarding on your router along with a service like dyndns to allow you to access this functionality from outside of your home network. Roughly speaking you need to:

  1. Establish an external IP address for your home network using a system like dyndns.org. At that point you'll have a publicly visible address like: TheAndersons.dyndns.org
  2. Use your router to set up port forwarding to the machine that is running VisibleTesla. Assuming you didn't change the port, you would set your router so that TCP traffic that is bound for port 9090 gets sent to port 9090 on the machine that's running VisibleTesla. This may involve giving that machine a static IP address.
  3. Try it out! From a web browser on a machine that is not on your home network, try accessing one of the commands. For example, you can enter the URL below. You will be prompted for your username and password (remember, the username is always "VT"), and once you enter them, you'll see a simple web page with the other options listed.
    http://TheAndersons.dyndns.org:9090/pages/InactivityOptions.html

Getting Status

You can receive basic status about your car using the url:

http://192.168.1.45:9090/pages/VehicleStatus.html

Remember, you need to use your IP address or hostname. When you enter this URL, you'll get a page back with a table that looks similar to this:

Vehicle Status as of 2014-06-07 10:27:27

Item Value
SOC 73%
Ideal 168.6 mi
Rated 148.2 mi
Estimated 157.5 mi
Charge State Disconnected
Speed 27.3 mph
Location 123 Main St., Menlo Park, CA 94025, USA
Inactivity Mode Allow Sleeping, Current State: Awake

Requesting status in this way will not wake up your car if it is sleeping. The data you receive will be the last known data. The car will not be asked for new information. The date and time shown at the top of the table correspond to when the table was prepared. the values in the table might be slightly older (or much older if your car is sleeping).

Custom Pages

VisibleTesla can serve up web pages that are designed by you and can include template variables. You need to store these pages in a folder where VisibleTesla can find them. That folder can be on the web or on your local machine. Either way, the location is specified by a URL in the Advanced Preferences. To access custom pages in this folder, use URLs of the form: http://localhost:9090/custom/MyCustomPage.html

In this example, you would have a file named MyCustomPage.html stored in the folder that you specified in the advanced preferences.
