The Graphs Tab

This tab tracks and graphs basic statistics about your car as a line chart. The x-axis represents the time at which the stats were gathered and the y-axis represents the values. A Show Items drop down list allows you to select which statistics are displayed. It also gives a color-coded legend so you can tell which line represents which value. If you deselect a particular item it will not be displayed, but the statistics for that item will continue to be gathered.

Note that these statistics are only collected while VisibleTesla is running. If you quit the app the statistics will not be collected until the next time you restart it. If you have selected Options→Allow Sleeping and you don't use the app for 15 minutes, it will stop collecting stats. VisibleTesla stores the statistics it collects. If you quit the app and restart it later, it will display the old statistics and newly gathered ones.

The statistics collected are:

Item Description Exported As
Voltage (Volts) Volts into the car C_VLT
Current (Amps) AC current into the car C_AMP
Range (mi or km) Rated Range C_EST
State of Charge (%) Battery percentage remaining C_SOC
Rate of Charge (mi or km per hour) Distance replenished per hour C_ROC
Power (kW) DC power to/from the battery pack S_PWR
Speed (mph or km/h) Speed in mph or km/h S_SPD
Battery Current (Amps) Current flowing to/from the battery C_BAM

You can interact with the line chart in several different ways:

The Graphs tab also allows you to select how you would like the information displayed. It can display a line chart, a line chart with markers (dots) at the points where readings were taken, or both. The default is to display both. You can choose your display option by bringing up a context menu on the chart. To do this, press the secondary mouse button (usually the right button) when the mouse is over the chart. A menu will appear with the three display choices (lines, markers, or both). Once you choose an option it will be remembered and used the next time you start the app. You'll notice that if you choose the "both" option, the lines will be thin and semi-transparent to make the markers more visible. If you choose to display only lines, the lines will be more pronounced.

You can export the collected statistics to an Excel file using the File→Export Stats Data... menu item. For details on the process, please see the section: Exporting Your Data

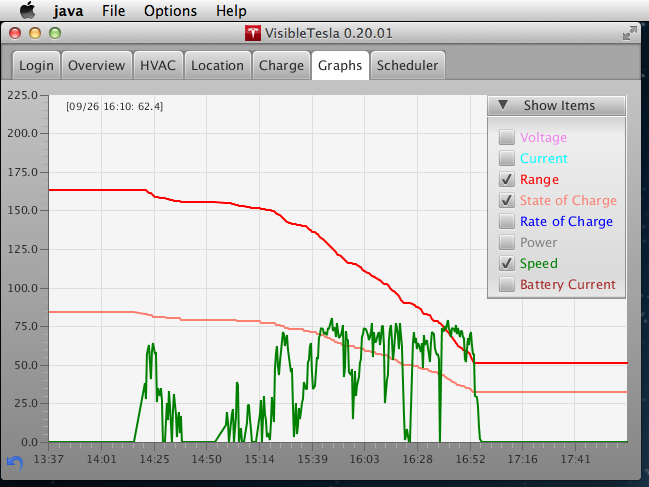

The following screen shots show the Graphs tab in a number of different states. The first displays the Show Items dropdown list open with some items selected and others deselected.

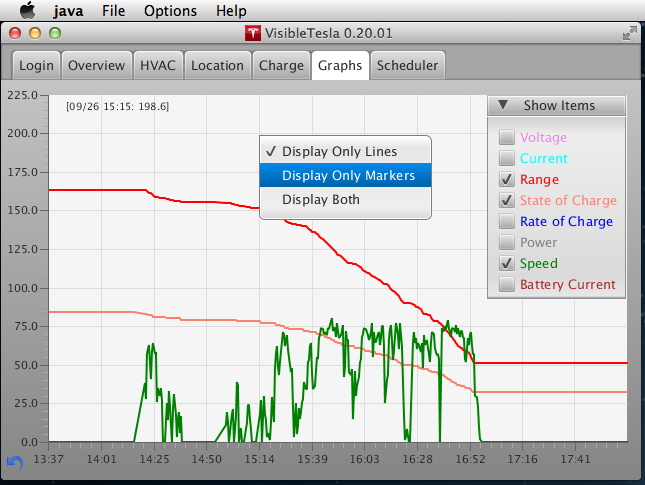

The next screen shot shows the context menu which controls the appearance of the graph.

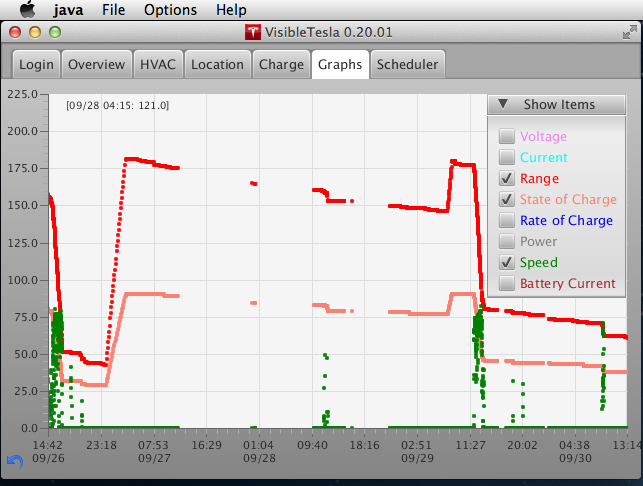

In this screen shot you can see how Display Only Markers mode makes it easy to spot gaps in the data.

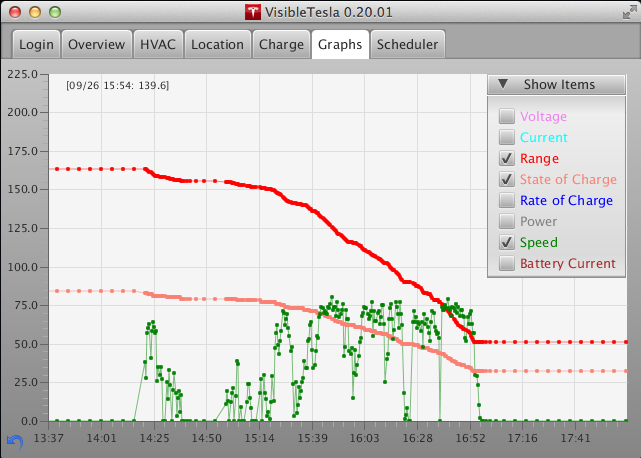

When you select Display Both mode it makes it easier to follow trends while still seeing the actual samples.


There is one other option that impacts how the graph is displayed. Sometimes there are gaps in the data that may have occurred because your car was asleep, you were in a cellular dead zone, or VisibleTesla wasn't running. Display Only Markers can make it easy to spot the gaps, but you loose the trend lines. There is now a new option for handling gaps. In the Graphs section of the Prefs Tab you can configure a new option called Ignore Gaps. If you check this checkbox, lines will not be drawn between points that are separated by long gaps in the data. How long is long? That is determined by another preference option. There is a slider that allows you to set a time in minutes which constitutes a gap in the data.

If you have accumulated a lot of data it can take some time to load the Graph. While the data is loading, you may see your mouse pointer change into the "busy" image. Depending on what system you're using, this might be an hourglass, a spinning beach-ball, a spinning circle, or something similar. Once the data is loaded into the graph, your pointer will revert to it's normal image. You can control how much data is loaded via a setting in the General section of the Prefs Tab. Choosing to load the last 14 days of data is a reasonable option.
